Chrome/Nitride/Bimetallic single screw and barrel
Professional Bimetallic Screw Barrel & Plastic Machinery Parts Manufacturer
Specification
In the case of bimetallic barrel for melt, the carbon tungsten containing has been rasied from the previours 10% to 30% and 50% now, the processing length increased from 3000mm to 4000mm.
Our product adopts new generation technology HP/HVOF totally bimetallic coating spraying instead of PTA ridge spraying welding. WPT1 anti-corrosion type application: nylon, PVC,PC,PMMA etc. WPT2 resistant wearing and high tempera ture application: nylon with glass fiber magnetic powder, Al Mg powder, Bakelite injection and etc. WPT3 has WPT1 and WPT2 advantages.
Diameterφ15mm-φ300mm
Max.Length:≤10000mm
Application
Blowing film/Granulation/Wire & Cable/Sheet & Panel and other single plastic screw extrusion products
screw and barrel for plastic extruder machine
Material:38CrMoAlA
Process:Nitriding & Bimetallic
Hardening Hardness:HB280-320
Nitrided Hardness:HV900-1000
Nitrided Case Depth:0.45-0.8mm
Nitrided Brittleness:Less than Grade 2
Surface Roughness:Ra 0.4
Screw Straightness:0.015mm
Application: bimetallic single extruder plastic machine
Application product:
 |  |  |  |  |  |

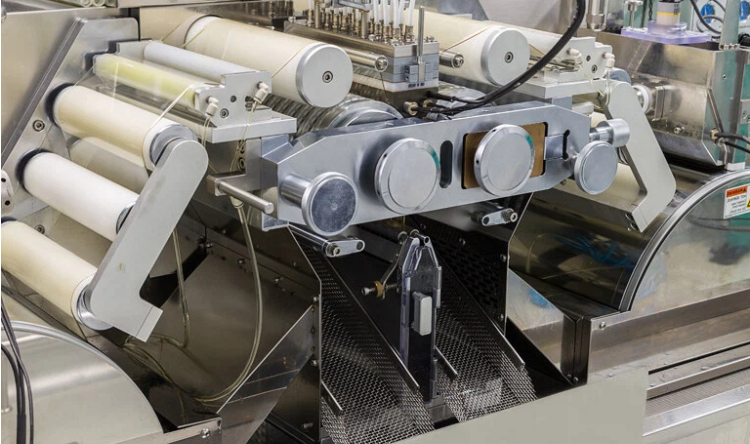

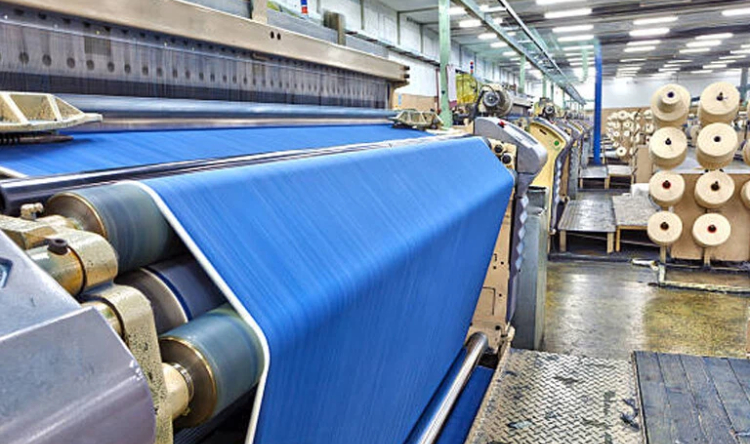

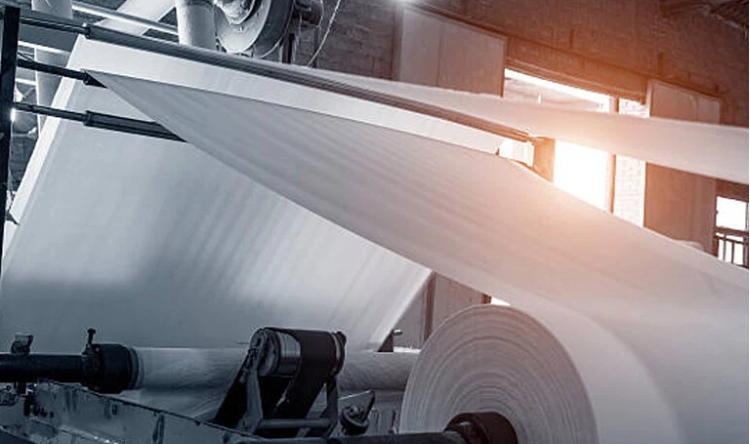

| Textile Industries | Tap Plant/sheet Plant | Paper Industries | Cable Industries | Rubber Industries | Plastic Moulded Furniture |
