Static Mixer for Plastic & Rubber for Extrusion Color Mixing & Foaming Processes Machinery Parts

Plastic Extruder Machine Static MixerExtrusion static mixers can be easily integrated into existing extrusion lines, allowing manufacturers to enhance material color mixing efficiency by inserting mixing elements in front of mold. Which are widely used on film and sheet production lines. Base on mixing requirement, we offer 2 types of mixing elements for options

Application:

Homogenize melting plastic

 Eliminate laminar flow

Better foaming agent distribution

Easy for color changing

Product size deviation

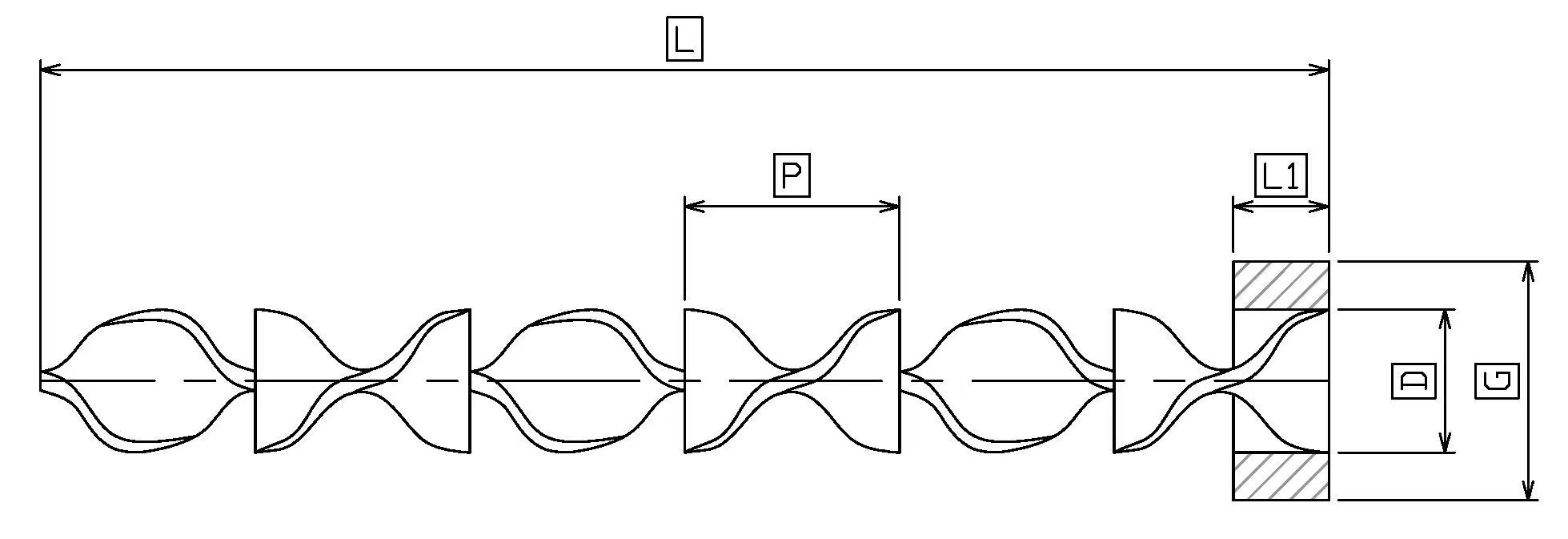

Model		D(mm)	P(mm)	L(mm)	G(mm)	L1(mm)
MIXER	15	15	22.5	135	22	10
	20	20	30	180	30	10
	25	25	37.5	225	35	15
	30	30	45	270	45	15
	40	40	60	360	60	15
	50	50	75	450	70	20
	60	60	90	540	80	20
MIXER	15	15	15	75	22	10
	20	20	20	100	30	10
	25	25	25	125	35	15
	30	30	30	150	45	15
	40	40	40	200	60	15
	50	50	50	250	70	20
	60	60	60	300	80	20

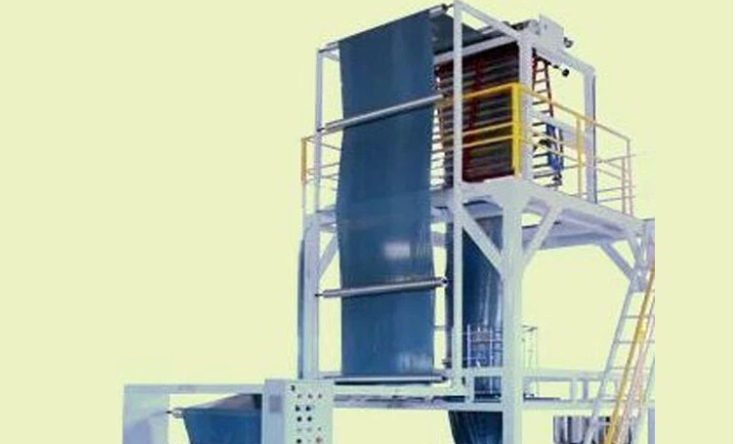

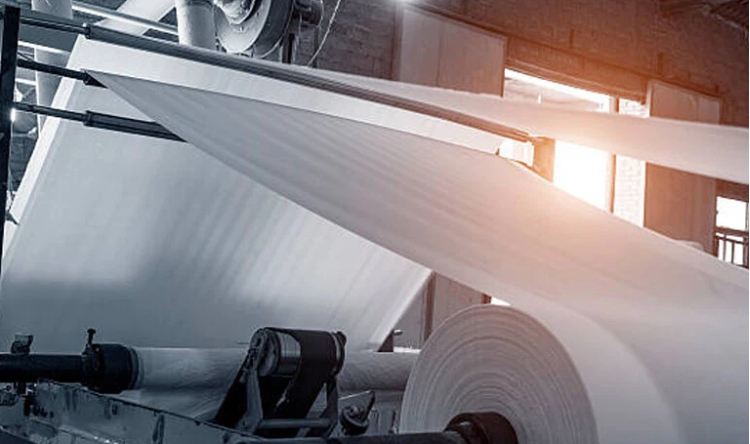

Cable Industires	Plastic Granules	Blown Film Extrusion	Food Industries	Paper Industries	Rubber industries
