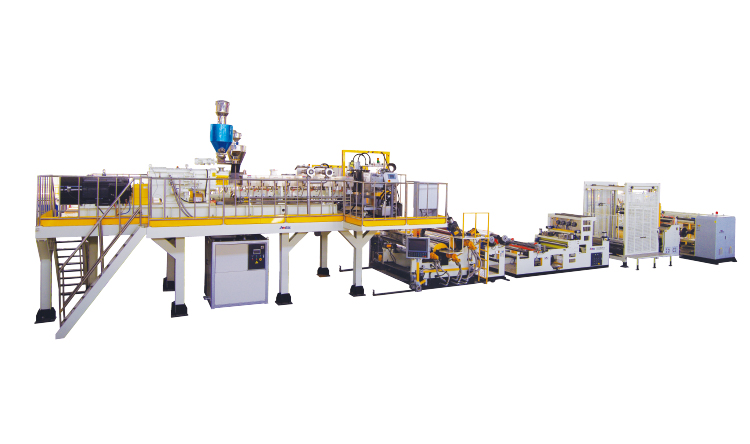

PET/PLA environmental sheet extrusion line: we develops the parallel twin screw extrusion line for PET/PLA sheet, this line equipped with degassing system, and no need drying and crystallizing unit. The extrusion line has the properties of low energy comsuption, simple production process and easy maintenance. The segmented screw structure can reduce the viscosity loss of PET/PLA resin, the symmetrical and thin-wall calender roller highten the cooling effect and improve the capactity and sheet quality. Multi components dosing feeder can control the percentage of virgin material, recycling material and master batch precisely, the sheet is widely used for thermoforming packaging industry.

Model	Extruder model	Product thickness(mm)	Output(kg/h)	Motor power
Multi layer	HSE75/40 + HSE52/40-1000	0.15 - 1.5	500-600	132/15
Single layer	HSE75/40-1000	0.15-1.5	450-550	160
High - effcient	HSE95/44 + HSE65/44-1500	0.15-1.5	1000-1200	250/75
Note: The information listed above is for reference only and can be customized according to customer requirement
