Ceramic heater band
Professional Bimetallic Screw Barrel & Plastic Machinery Parts Manufacturer
Ceramic Heater Band
Product Specification Sheet
1. Product Description
Ceramic heater bands are mainly used for barrel heating on injection molding machines, extruders and other plastic machinery. They feature high temperature resistance, good insulation, uniform heating, high efficiency and long service life.
2. Structure
Outer shell: Stainless steel
Insulation material: High-purity ceramic
Heating element: High-quality resistance wire
3. Features
High temperature resistance
Excellent insulation performance
Uniform temperature distribution
Fast heating speed & high thermal efficiency
Stable performance, long service life
Easy installation and maintenance
4. Applications
Injection molding machine barrel
Extruder screw barrel
Plastic rubber machinery
Other industrial heating equipment
Size(mm) Inside Dia *H | Voltage (V) | Power (W) | Size(mm) Inside Dia *H | Voltage (V) | Power (W) |
| 60*50 | 220/380V | 188.4 | 85*80 | 220/380V | 1067.6 |
| 60*60 | 220/380V | 226.08 | 85*90 | 220/380V | 1201.05 |
| 60*70 | 220/380V | 659.4 | 85*100 | 220/380V | 1334.5 |
| 60*80 | 220/380V | 753.6 | 85*120 | 220/380V | 1601.4 |
| 60*100 | 220/380V | 942 | 90*50 | 220/380V | 706.5 |
| 65*50 | 220/380V | 510.25 | 90*60 | 220/380V | 847.8 |
| 65*60 | 220/380V | 612.3 | 90*70 | 220/380V | 989.1 |
| 65*70 | 220/380V | 714.35 | 90*80 | 220/380V | 1130.4 |
| 65*80 | 220/380V | 816.4 | 90*90 | 220/380V | 1271.7 |
| 65*100 | 220/380V | 1020.5 | 90*100 | 220/380V | 1413 |
| 70*50 | 220/380V | 549.5 | 90*120 | 220/380V | 1695.6 |
| 70*60 | 220/380V | 659.4 | 100*50 | 220/380V | 785 |
| 70*70 | 220/380V | 769.3 | 100*60 | 220/380V | 942 |
| 70*80 | 220/380V | 879.2 | 100*70 | 220/380V | 1099 |
| 70*90 | 220/380V | 989.1 | 100*80 | 220/380V | 1256 |
| 70*100 | 220/380V | 1099 | 100*90 | 220/380V | 1413 |
| 75*50 | 220/380V | 588.75 | 100*100 | 220/380V | 1570 |
| 75*60 | 220/380V | 706.5 | 100*120 | 220/380V | 1884 |
| 75*70 | 220/380V | 824.25 | 110*50 | 220/380V | 863.5 |
| 75*80 | 220/380V | 942 | 110*60 | 220/380V | 1036.2 |
| 75*90 | 220/380V | 1059.75 | 110*70 | 220/380V | 1208.9 |
| 75*100 | 220/380V | 1177.5 | 110*80 | 220/380V | 1381.6 |
| 80*50 | 220/380V | 628 | 110*100 | 220/380V | 1554.3 |
| 80*60 | 220/380V | 753.6 | 110*120 | 220/380V | 1727 |
| 80*70 | 220/380V | 879.2 | 120*50 | 220/380V | 2072.4 |
| 80*80 | 220/380V | 1004.8 | 120*60 | 220/380V | 942 |
| 80*90 | 220/380V | 1130.4 | 120*70 | 220/380V | 1130.4 |
| 80*100 | 220/380V | 1256 | 120*80 | 220/380V | 1318.8 |
| 80*120 | 220/380V | 1507.2 | 120*90 | 220/380V | 1507.2 |
| 85*50 | 220/380V | 667.25 | 120*90 | 220/380V | 1695.6 |
| 85*60 | 220/380V | 800.7 | 120*100 | 220/380V | 1884 |
| 85*70 | 220/380V | 934.15 | 120*120 | 220/380V | 2260 |
Application:
 |  |  |  |  |  |

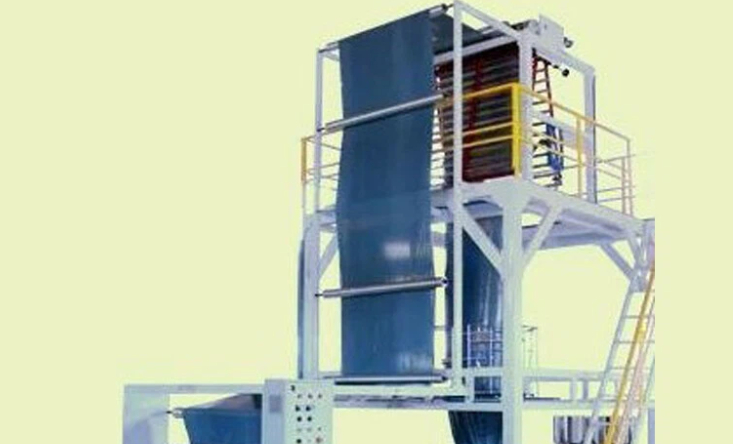

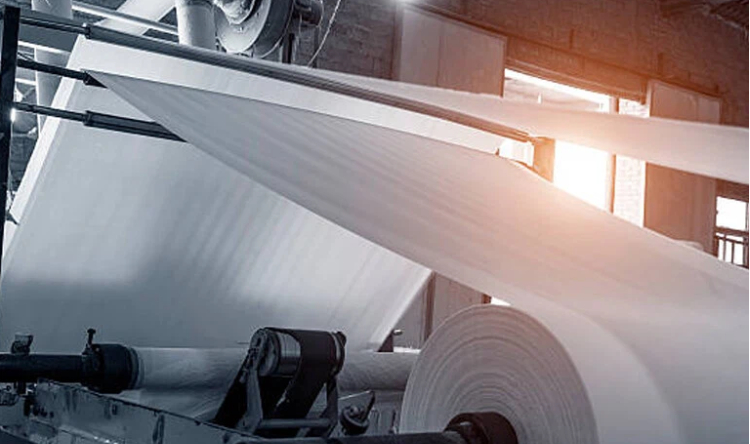

| Cable Industries | Food Industries | Paper Industries | Blow Film Industries | Plastic Granules | PVC PE Pipe |
