Base Bimetallic Barrel Centrifugal Casted
Product Description
Centrifugal casting or rotocasting is a casting technique that is typically used to cast thin-walled cylinders. It is chiefly used to manufacture rotationally symmetric stock materials in standard sizes for further machining, rather than shaped parts tailored to a particular end-use.
Technical Parameters
Suitable Machine: Injection / Extrusion / Blowing ...
Available Size: Φ < 500mm, L < 8,000mm
Process Method: Centrifugal Casting
Surface Hardness: 52-62 HRC
Surface Roughness: < Ra 0.8
Screw Straightness: < 0.02mm/m
Advantages
By casting and sintering high quality alloy powder on barrel inside surface with thickness1.5-2.0mm, screws can get higher performance in both wearing & corrosion resistant performance.
Application
General plastics & engineering plastics with below 70% glass fibre filling.
| Type | Components | Hardness (HRC) | Abrasive(Resistance) | Corrosion(Resistance) | Applications |
| C | Fe, Cr, Ni | 56 - 60 | x | x | Recycling & engineering, plastics, reinforced additives less than 20% |
| B | Ni, W, Cr | 56 - 62 | xx | xx | Reinforced additives less than 35% |
| D | Ni, W, Cr | 60 - 64 | xxx | xx | High abrasive and moderate corrosive plastics |
| Suitability: ( X good ) to ( XXX excellent) | |||||
| Type | Ingredients ( Weight %) | ||||||||
| Cr | C | Fe | B | Si | W | Mn | Ni | Others | |
| C | 8 | 1.2 | Bal | 4.3 | 4 | ∕ | 0.65 | 10.8 | ∠1.0 |
| B | 8 | 1.4 | 5 | 4 | 3.3 | 16.5 | 0.5 | Bal | ∠1.0 |
| D | 8 | 1.4 | 5 | 4 | 3.3 | 40 | 0.5 | Bal | ∠1.0 |
Highest composition of tungsten carbide can go to 45%, which enables the barrels have 5 times-resistance capacity than normal bimetallic barrels and up to 60% glass fibre filling in general & engineering
Application product:
 |  |  |  |  |  |

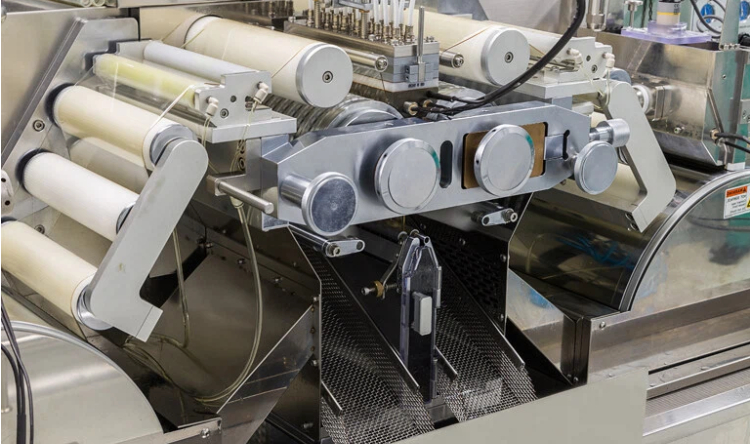

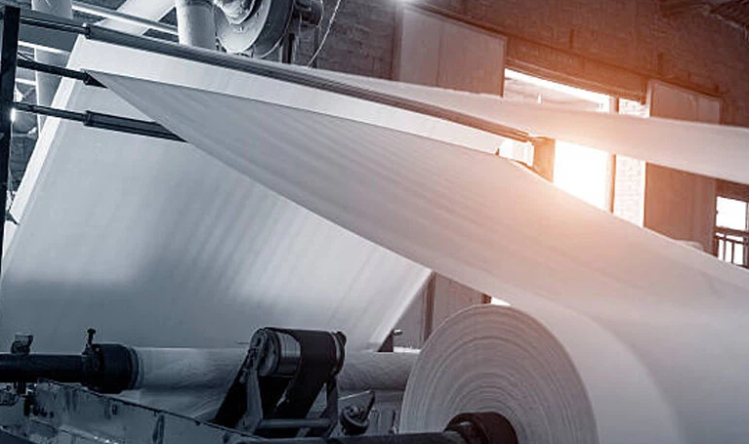

| Cable Industries | Paper Industries | Film Industires | Tap Plan/sheet | Plastic Moulded Furniture | Plastic Granules |
